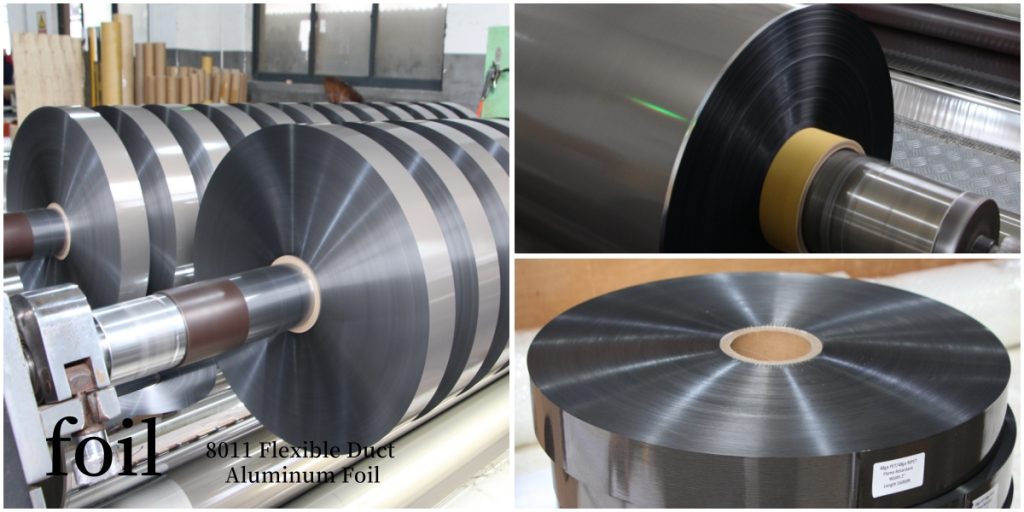

In HVAC, the complex “breathing system” of modern buildings, air ducts are an essential component. 8011 Flexible Duct Aluminum Foil, its core material, boasts a series of sophisticated engineering properties, making it a key choice for ensuring efficient, silent, and long-lasting system operation.
8011’s Superior Flexibility and Dynamic Strength
8011 aluminum alloy is designed specifically for highly flexible applications. Its core strengths lie in its excellent deep-drawing formability and dynamic fatigue strength.
- In H24 or O2 conditions, aluminum foil maintains structural integrity and resists cracking during complex bending, coiling, and stretching, providing an ideal foundation for flexible ducting.
- Air conditioning systems are subject to constant airflow pulsation and mechanical vibration, and ordinary materials are susceptible to cracking due to metal fatigue. 8011 aluminum foil, through its optimized alloy composition and processing technology, significantly improves its ability to withstand cyclic stresses, extending the service life of ducts in dynamic environments.
Table 1: Comparison of Key Mechanical Properties of 8011 Aluminum Foil and Common Materials
| Performance Parameters | 8011-H24 Aluminum Foil | Ordinary Pure Aluminum Foil | Key Significance |
| Tensile Strength (MPa) | 115 – 145 | 70 – 100 | Ensures substrate strength and withstands installation and operational stresses |
| Elongation (%) | ≥ 10 | ≥ 3 | Demonstrates excellent flexibility and formability |
| Cupping Value (mm) | ≥ 6.5 | < 5.0 | Directly reflects deep drawing performance |
| Fatigue Strength | Significantly higher than ordinary pure aluminum | Benchmark | Ensures durability in long-term vibration environments |
Note: Data is based on testing standards such as GB/T 3880. Specific values are affected by thickness and condition.
Barrier Properties and Thermal Performance of 8011 Flexible Duct Aluminum Foil
Aluminum foil is essentially a dense metal barrier. 8011 flexible duct aluminum foil, with its near-perfect gas and water vapor barrier properties (WVT ≈ 0 g/(m²·d)), completely blocks moisture penetration, effectively preventing moisture-induced insulation failure, leading to heat loss and mold growth. Furthermore, its extremely low thermal emissivity and high reflectivity provide the duct with a highly effective “heat shield,” minimizing radiant heat transfer, significantly improving the system’s overall insulation efficiency and reducing energy consumption.
Excellent Corrosion Resistance
- 8011 flexible duct aluminum foil contains appropriate amounts of elements such as iron and silicon, resulting in excellent corrosion resistance.
- It naturally forms a dense, inert aluminum oxide protective film in air, effectively resisting corrosion from the atmosphere, weak acids and bases, and internal circulating air.
- Even in high humidity or air conditioning condensate containing trace amounts of corrosive media, it exhibits stability far exceeding that of ordinary materials, ensuring long-term, safe operation of the duct and reducing maintenance requirements.
Lightweight, High Strength, and Easy Installation
Density Advantage
- Aluminum’s density of 2.7g/cm³ makes 8011 aluminum foil-based ductwork extremely lightweight.
- This reduces the difficulty and cost of transportation, handling, and installation, and reduces the load on the building structure.
Excellent adhesion and process adaptability
- Both the composite fiberglass mat and PE film adhere tightly to ensure the integrity and sealing of the duct structure.
- As an independent barrier layer, it also improves construction efficiency and quality.
8011 flexible duct aluminum foil is far more than just ordinary metal foil. Its material science-driven design achieves a sophisticated balance of flexibility, strength, barrier properties, thermal performance, and durability. From ensuring efficient and low-noise airflow, to safeguarding precious heat and cold energy, and to resisting the ravages of time and the environment, 8011 aluminum foil, with its reliable performance, silently supports the comfortable, healthy, and energy-efficient air environment of modern buildings.
