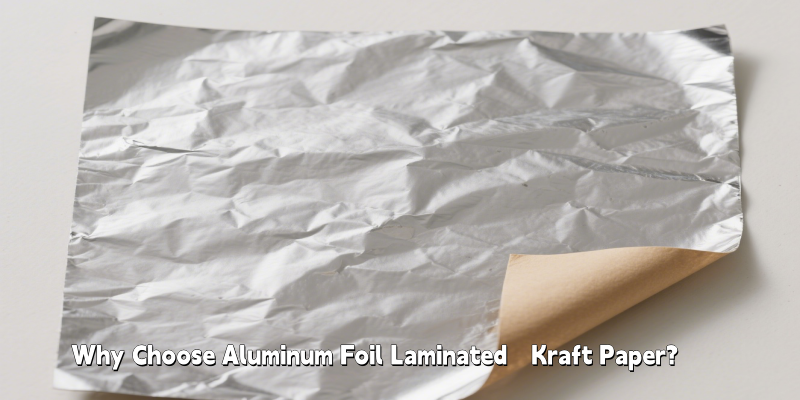

Aluminum foil laminated kraft paper is a hybrid material combining kraft paper and aluminum foil, ideal for packaging. Aluminum foil is laminated with white kraft paper to create a multi-layer structure. This lamination process enhances the strength and durability of the paper while retaining the reflective and barrier properties of the aluminum foil. The aluminum foil layer effectively blocks moisture, light, and air, helping to protect packaging or insulation. White kraft paper is tough yet flexible, easily formed, and suitable for a variety of applications.
Core Advantages of Aluminum Foil Laminated Kraft Paper
Zero-Permeability Moisture Barrier
The aluminum foil layer (0.006-0.05mm) forms a dense metal barrier with a near-zero water vapor transmission rate. Comparative experiments have shown that in a 90% humidity environment, the corrosion rate of electronic components packaged in laminated kraft paper is 98% lower than that of conventional PE film packaging, significantly extending the storage life of precision instruments, food, and pharmaceuticals.
Dynamic Heat Reflection Insulation
The aluminum foil has a reflectivity of up to 97%, effectively blocking infrared radiation heat. Industrial tests show that pipe insulation using 150g/m² kraft paper + 0.03mm aluminum foil reduces the cooling rate by 40% compared to traditional glass wool materials, making it suitable for cold chain logistics boxes and thermal protection of industrial equipment.
Tear Resistance Mechanical Architecture
Substrate Mechanical Strengthening Model: Puncture Resistance (N) = 0.32 × Kraft Paper Weight (g/m²) + 6.8 × Aluminum Foil Thickness (mm)
Table 1:
| Kraft Paper Weight (g/m²) | Longitudinal Tensile Strength (N/15mm) | Transverse Tear Strength (mN) |
| 50 | ≥180 | ≥800 |
| 100 | ≥350 | ≥1500 |
| 150 | ≥500 | ≥2200 |
| The high-weight kraft paper substrate imparts excellent mechanical properties, reducing breakage by 76% in transport vibration testing. | ||
Lightweight and Cost-Optimized
Weight per unit area is only 120-280g/m², at the same level of protection
- 40% lighter than aluminum-plastic laminated containers
- 85% lighter than steel containers
Logistics cost calculation: Containers can carry 32% more cargo per cubic meter, saving over $15,000 in annual freight costs.

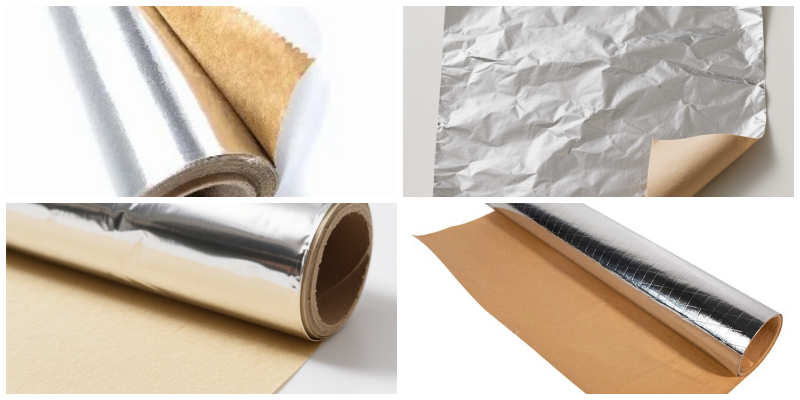

Aluminum Foil Laminated Kraft Paper Parameters
Table 2: Full-Dimensional Specifications and Production Adaptation Guide
| Parameter System | Technology Range | Production Line Adaptation Solutions | Industry Application Examples |
| Structural Design | AL/Kraft Paper | Barrier-Bearing Layer Directional Lamination | Food-Grade Oxygen Barrier Packaging/Roofing Moisture-Proofing Underlayment |
| Slitting Width | 300-1600 (±0.3mm) | Supports In-Line Slitting, Compatible with Autocon Roll-to-Roll Systems | Seamless Feeding for Automated Packaging Lines |
| Roll Inner Diameter | 76/152 | Compatible with Montalvo Tension Control Systems | High-Speed Printing and Laminating Equipment |
| Aluminum Foil Thickness | 0.006-0.05mm | 0.006mm (Lightweight Moisture-Proof) / 0.05mm (Heavyweight Insulation) | Electronic Anti-Static Packaging/Industrial Pipeline Insulation |
| Kraft Paper Weight | 20-150g/m² | 20g (Filling Layer) / 80g (Food Packaging) / 150g (Heavyweight) | Medical sterilization packaging/sea transport protection for mechanical parts |
| Surface treatment | Customizable white/yellow | Compliant with FDA 21CFR 176.170 food contact standards | Brand visual system/safety labeling |
In-depth customization capabilities
- Adjustable aluminum surface resistance
- Antimicrobial treatment added to kraft paper
- Compound interface enhancement treatment
Industry Solutions
Food Industry Value Chain Upgrade
- Bakery Packaging Innovation: 0.008mm aluminum foil + 80g food-grade white kraft paper, oxygen transmission rate <0.5 cm³/m²/24h, extending the shelf life of Danish pastries from 7 days to 21 days
- Frozen Supply Chain Optimization: 100% toughness retention at -40°C, reducing the breakage rate of quick-frozen dumplings during transit to 0.3%
- Sustainable Packaging: Biodegradable coating with a 92% recyclability rate
High-End Manufacturing Protection System
Table 3:
| Protection Type | Technical Solution | Verification Standard | Performance Improvement |
| Oceanfront Salt Spray Protection | 0.02mm aluminum foil/150g kraft paper | ASTM B117-720h | Corrosion Area <0.05% |
| ESD Protection | 10⁸Ω Surface Resistance Aluminum Layer | ANSI/ESD S20.20 | Static Voltage Decay <0.1s |
| Vibration Cushioning | Corrugated Laminated Structure | ISTA 3E | G-shock ≤ 45 |
Pharmaceutical Compliant Packaging
- Sterilization Compatibility: Withstands 121°C steam sterilization for 30 minutes without delamination of the laminate
- Bacterial Barrier: Ultra-thin 0.005mm aluminum foil provides microbial barrier
- Drug Stability: Relative humidity fluctuations are controlled to ±3%
Building Energy-Saving System Engineering
- Pipe Insulation: 0.03mm aluminum foil reflective layer + 120g kraft paper buffer layer reduces heat loss by 22%
- Roof Moisture-Proofing: Ultra-wide 1600mm design increases construction efficiency by 40% and eliminates the risk of joint leakage
- Acoustic Optimization: Sound insulation reaches 28dB when the surface density is increased to 300g/m²
The Sustainable Value of Aluminum Foil Laminated Kraft Paper
Table 4: Full-Life Cycle Cost Comparison with Traditional Materials, Per 1000 m²
| Cost Item | Aluminum Foil Laminated Kraft Paper | Aluminum-Plastic Laminated | Pure Aluminum Sheet |
| Raw Material Cost | $380 | $520 | $1,150 |
| Warehouse Space | 0.8 m³ | 1.2 m³ | 4.5 m³ |
| Logistics Energy Consumption | 28 kWh | 42 kWh | 185 kWh |
| Waste Disposal Cost | $15 (Recyclable) | $80 | $210 |
| 3-Year Total Cost | $12,600 | $18,300 | $42,800 |
Environmental Certifications
- 100% of Kraft Paper is FSC Certified
- Aluminum Layer Recycling Rate ≥ 95%
- Carbon Footprint: 1.8 kg CO₂e/m²
The essence of aluminum foil laminated kraft paper is the triumph of engineering thinking in materials science—reconstructing protective logic at the micron scale through precise control of the aluminum-paper interface. When you need to simultaneously manage salt spray from shipping, cold chain temperature fluctuations, sterile environments, or ESD risks, this requires more than just material selection; it redefines supply chain competitiveness.
