8011 Aluminum Strip
Alloy model: 8011 Aluminum
Temper: O, H18, H22, H24, H26, etc
Thickness: 0.1 mm-6.5 mm
Width: 3mm-2600mm
MOQ: 1 ton
Application: Heat exchanger, evaporator, condenser
8011 Aluminum Strip Description:
The raw material of 8011 aluminum strip is pure aluminum coils that are rolled into thin materials of different thicknesses and widths by a rolling mill, and then slit by a slitting machine according to the purpose. Commonly used tempers include O temper and H temper, and the width generally does not exceed 800mm. It is mainly used in transformers, fin radiators, cables, etc. Yongsheng Aluminum can provide slit processing services and free samples according to customer needs.
Aluminum Strip Classification:
- Pure aluminum strip
- Transformer aluminum strip
- Super hard aluminum strip
- Fully soft aluminum strip
- Semi-hard aluminum strip
- Anti-rust aluminum strip
8011 Aluminum Strip Specifications:
Chemical Composition
Aluminium |
Si | Fe | Cu | Mg | Mn | Cr | Zn | Ti | Al | Total |
8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.05 | 0.2 | 0.05 | 0.1 | 0.08 | Remain |
0.15 |
Physical Properties
Grade |
8011 Aluminium Strip |
Density |
2.71 g/cm³ |
Melting Point |
660.2 °C |
Elastic Modulus |
70 GPa |
Thermal Conductivity |
23.6 × 10^-6/°C |
Electrical Conductivity |
33.9 MS/m |
Specific Heat Capacity |
0.897 J/(kg·°C) |
Mechanical Properties
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
70-110 | 30-50 |
20-40 |

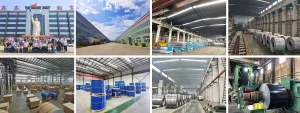

YSA 8011 Aluminum Strip Factory:
The Yongsheng Aluminum Factory covers an area of 193 acres. It has an annual output of 300,000 tons of 1-8 series aluminum plates, strips and foils, with a delivery time of 7-25 days. It is customized to meet the individual needs of customers. The company implements a strict management system, controls quality from the source, and conducts quality inspections at all levels. The product qualification rate reaches more than 99%, and the original factory warranty is provided. The products are exported to all over the world. We provide customers with periodic services, from product inquiry, communication and follow-up, contract signing, production and delivery, to after-sales service. We have dedicated personnel to follow up to ensure that every customer is satisfied!
Product & Packaging Photos
Why Choose Us
Yongsheng Aluminum is a leading aluminum products manufacturer&supplier in China with 25 years of export experience. Our outstanding product quality, price, and always on-time delivery has won us many long term partners and gained a great reputation worldwide. We provide one-stop product solution for both CC&DC aluminum products.
